Alfen EVE Double Plus Socket 1x22kW RFID met 1 Voedingskabel, LBA, SCN

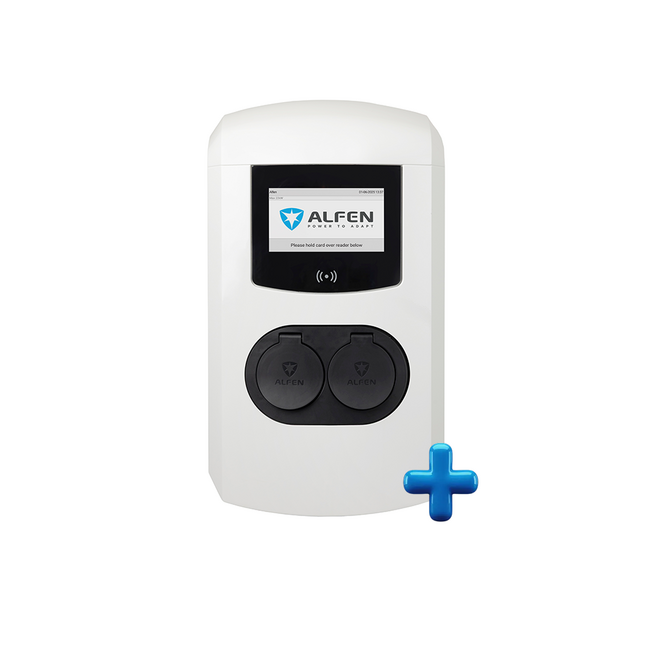

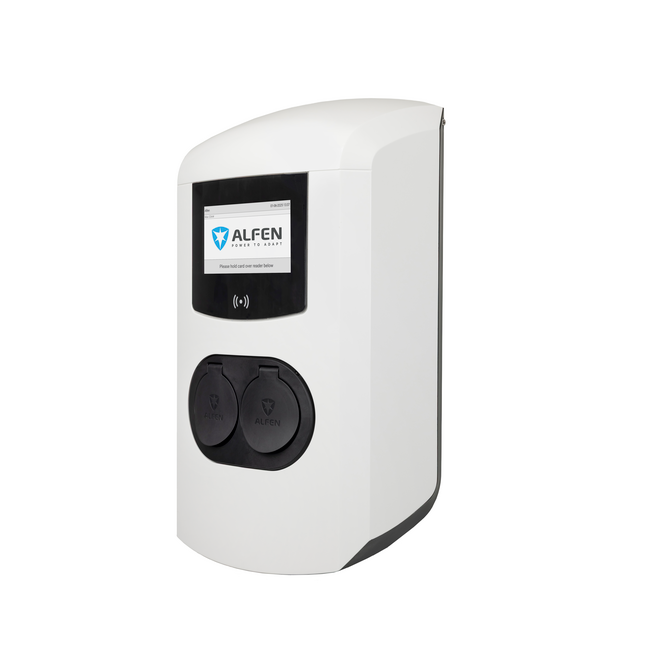

Alfen Eve Double Plus 22kW Socket

The Alfen Double Plus 22kW is an intelligent charging solution with a maximum output of 22 kW. Thanks to the Type 2 socket and RFID authorisation, this charger is ideal for both residential and commercial installations. The E-flux by Road back-end ensures a stable connection and full integration with charge management platforms. With support for smart charging and load balancing, this bundle optimises energy use and prevents overloading of the power grid.

The Double Plus can be upgraded via software with features such as OCPP integration, logo display, and DirectPayment (e.g. via QR code).

Note: Load balancing via P1 is not yet supported for double connections. This will be available after the upcoming software update, expected in January.

Benefits of the Eve Double Plus

This new generation of chargers is fully future-proof:

• Bidirectional-ready – ISO15118-20 + plug & charge
• Compatible with OCPP 2.0
• Daisy-chaining capabilities
• Improved display
• Enhanced durability and performance, both hardware and software

Features of the AL-8721195686290

• Socket variant (Type 2)
• 3-phase
• Max current: 32 A
• Charging power: 22 kW
• Smart Charging & E-flux compatible
• Dimensions: 770 x 390 x 320 mm

Installation support

• E-Flux by Road software for insight into charging sessions, automatic billing, and 24/7 support
• €24 excl. VAT cashback provided by Road
• Alfen configurations are preloaded
• MAVA Foqus handles your service processing
• 3-year hardware warranty

Service can be requested via the contact form on the E-Flux by Road website.

Extra accessories

At your one-stop EV wholesaler MAVA Foqus, you benefit from numerous advantages. With our complete range of accessories, you won’t need to look any further your installation is bound to be a success. We supply the unique EV-Go mounting pole, the P1 extension module and TQ energy meters.
